You are on the page : Installation - use - remove
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Protec Magnet, … highy recommanded by 100% of off road journalists / see our press release ( only in french )
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Install each element on a clean surface. Be sure to install all the rubber magnet elements correctly.
Make sure that the rubber magnet covers the car bodywork evenly.
When fitting the elements, make sure you leave a space of at least 5 mm from the edge.
With time, due to temperature changes, the elements could retract ( +/- 2% at least per metre )
Start with the doors, working from top to bottom.
Then continue with the other elements following the same process.
Lastly, install the small elements.
Don' t forget to clean both sides of the Protec Magnet before and after use.
The elements cannot be used when driving at high speeds.
Please reffer to the conditions of use in the price list.
When the temperature is very cold, it could be more difficult to install the elements for the front mud guards. Just press them on with your hands.
Should the Protec Magnet distort, place it in a warm place. After in few mintues it will warm up and then you can install it on the vehicle.
Do not place any electronic device ( telephone, GPS, computers, … ) on the magnet as this could interfare with functionment. ( this does not affect equipment inside the vehicle ).
When the outside temperature is very high ( up to 35°C ), we do not recommend that you use the Protec Magnet. Rubber tends to melt at 70°C and it could stick to the paintwork. If this should happen, you would need to re-polish the paintwork.
|
|
|
|
|
|
|
|
|
|
 |
|
 |
|
 |
|
 |
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
 |
|
|
|
|
|
|
 |
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Une seule protection efficace, les kits Protec Magnet ( 4x4 Mondial ) - On a essayé, c'est efficace. ( Action 4x4 ) - Une solution efficace et intelligente pour les baroudeurs… ( 4x4 magazine ) - En moins de 4 minutes, le tour est joué… ( tout terrain magazine ) - L'arme antirayure ! ( Free Road ) - Protection très efficace ( Toyota Land Cruiser Magazine ) - Aucun risque de rayure ! ( Passion 4x4 ) - Foie de passion 4x4, ce produit n'est pas un simple gadget, nous l'avons essayé ( Passion 4x4 ) - Ne rayez plus votre 4x4, blindez le ! … terriblement efficace… ( Action 4x4 ) - Solution astucieuse ( l'auto journal 4x4 )- Astucieux pratique et rapide ( Passion 4x4 ) - Protec Magnet protège le véhicule contre les agressions de la végétation ( Auto Verte ) - see our press release ( only in french )
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
Available for more than 81 4WD models
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Check the temperature of your Protec Magnet on the body car…
As it is indicated in the conditions of use, When the outside temperature is very high ( up to 35°C ), we do not recommend that you use the Protec Magnet. Rubber tends to melt at 70°C and it could stick to the paintwork.
In order to check the temperature, we sell this small infrared thermometer. You get the right temperature ( +/- 2° ) without any contact, in 1 second.
This thermometer can be used from -33°C to +200°C
Size : 10 mm x 93 mm.
2 Batteries LR44 included, already installed
More information about price and delivery / Order
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
Storage : If possible, store the elements flat, all elements facing the same way, otherwise, in their original packaging. Keep in a dry place and do not forget to dry the elements properly before storage.
Spare parts : It is possible to re-order any elements separatly.
For any further questions, please contact us.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Exemple of 1 Protec Magnet element Click on the picture to enlarge
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Easy storage in your boot / trunck Delivered in a packaging of 80 x 15 x 15 cm or 70 x 22 x 22
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
New quality for a better efficiency !
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
From January 16th 2007, A new quality of rubber magnet is now used.

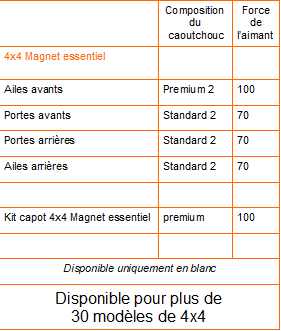

From 2003, 2 qualities of rubber magnet were used. One Standard Quality for doors and back mud guards and a premium quality for front mud gaurds, hood kits and small elements.
The premium quality have a magnetic force 100% higher as standard quality.
Now, from january 16th 2007, all kits 4x4 and hood kits are manufactured with the premium quality.
It is available for Classic, Classic tyre Design, Classic Monster Look? Black Mat and zebra ranges.
The other caracteristics are still the same.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Reaserch & development - quality process
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
We use rubber magnet wich has been developed especially for this use.
The reaserch focused on a very high magnet power according to a soft thick rubber magnet
We try to offer the best quality at the best price and our kits are tested frequently on order to increase the quality for each type of 4WD that ' s why some models can be completed with new elements in order to increase the protection during the year.
Our quality cannot be compared to other quality of soft rubber magnet because of their magnet power and tensile strenght.
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
